Tech specs of Flipper Zero
Take a closer look at the tech specs of your Flipper Zero and explore its hardware capabilities.

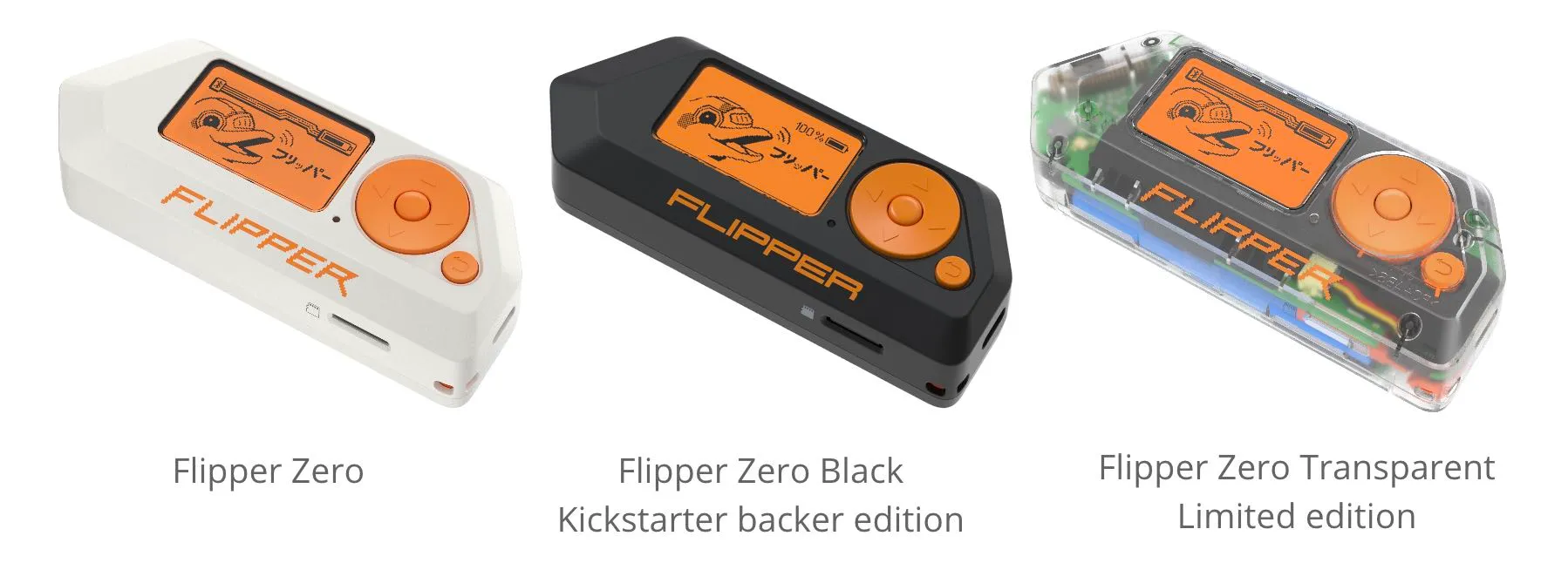

Body
Materials: PC, ABS, PMMA

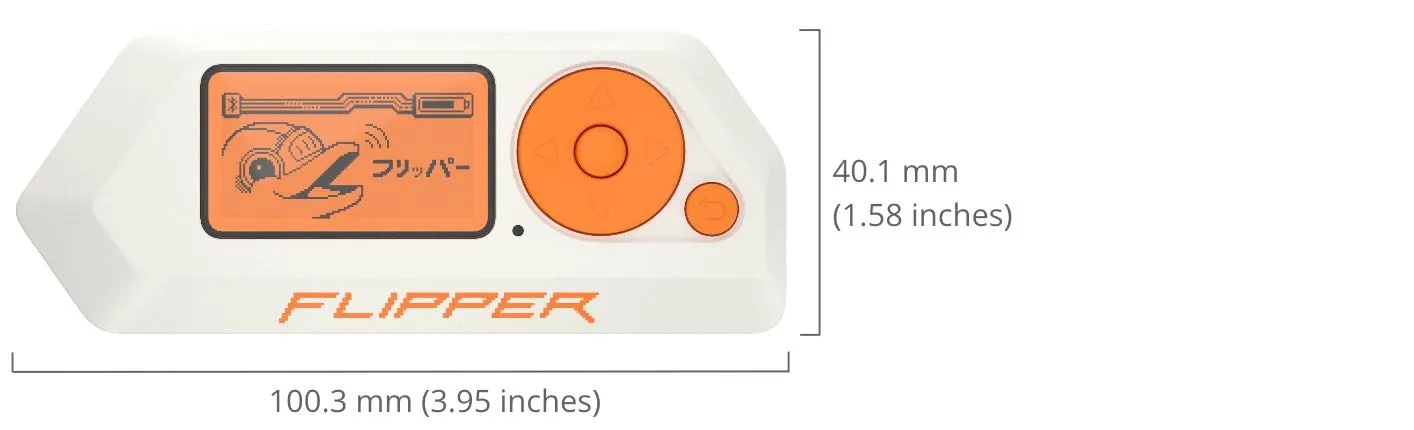

Size and weight
Height: 40.1 mm (1.58 inches)
Width: 100.3 mm (3.95 inches)
Depth: 25.6 mm (1.01 inches)
Weight: 102 grams (3.6 ounces)

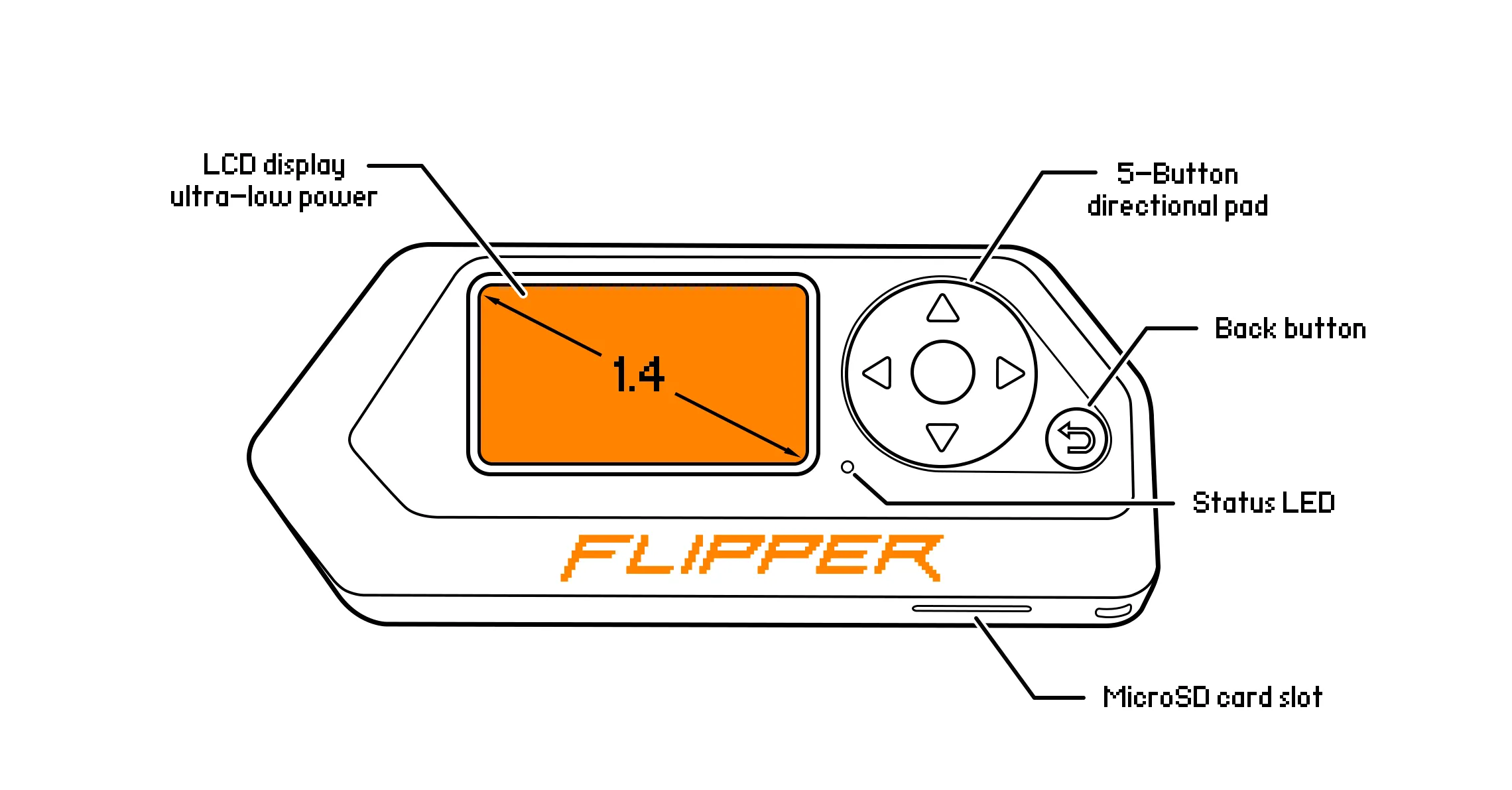

Display
Type: Monochrome LCD
Resolution: 128x64 pixels
Controller: ST7567
Interface: SPI
Diagonal size: 1.4“

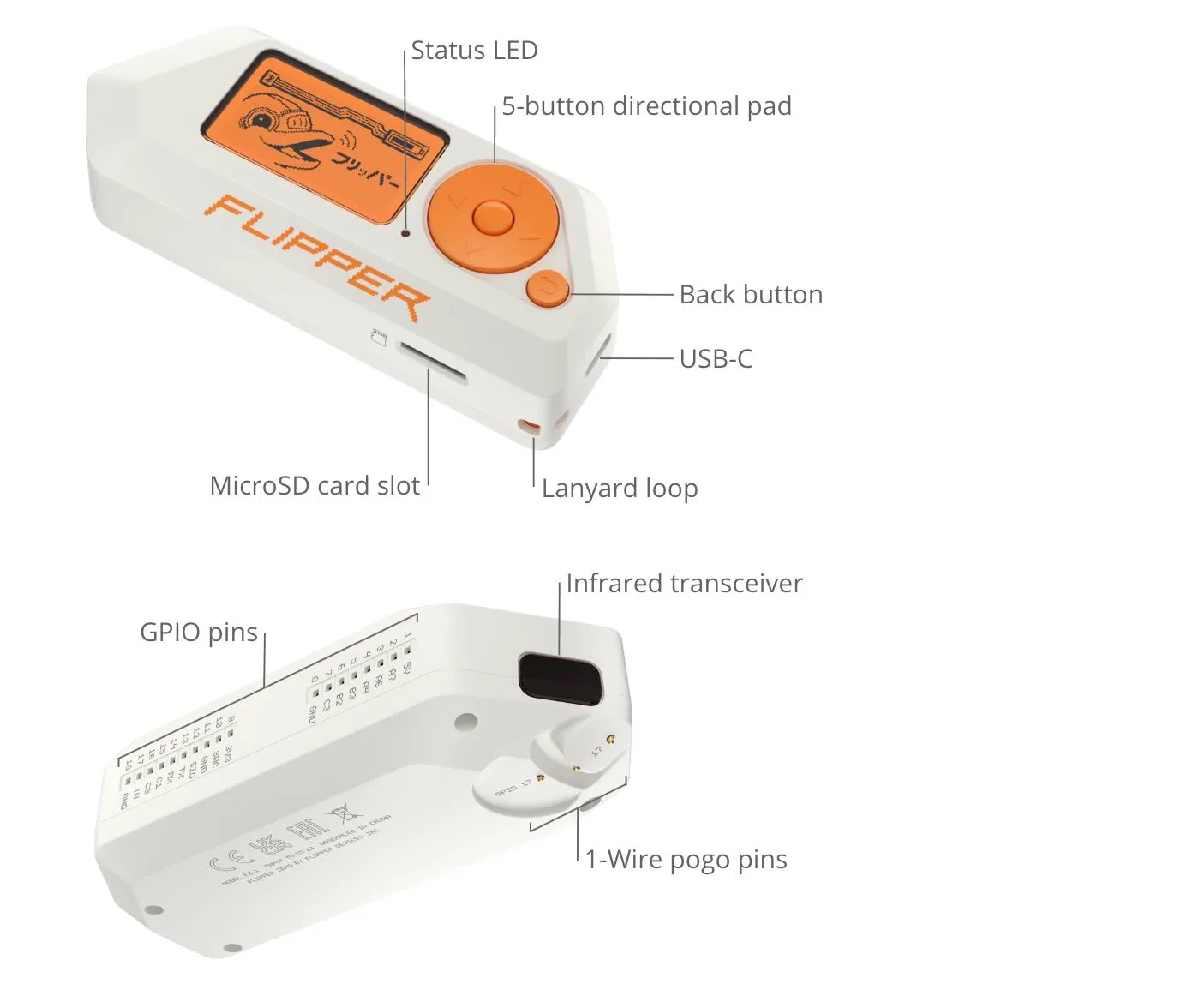

Buttons and connectors
Microcontroller unit
Model: STM32WB55RG
Application processor: Arm Cortex-M4 32-bit 64 MHz
Radio processor: Arm Cortex-M0+ 32-bit 32 MHz
Radio: Bluetooth LE 5.4, 802.15.4, and proprietary
Flash: 1024 KB (shared between application and radio)
SRAM: 256 KB (shared between application and radio)
Sub-1 GHz module
Transceiver: CC1101
TX power: -20 dBm max
Frequency bands (depends on your region):
- 315 MHz
- 433 MHz
- 868 MHz
- 915 MHz
NFC
Transceiver: ST25R3916
Frequency: 13.56 MHz
Supported cards:
- ISO-14443A/B
- NXP MIFARE Classic®, Ultralight®, DESFire®, etc.
- FeliCa™
- HID iClass (Picopass)
- NFC Forum protocols
RFID 125 kHz
Frequency: 125 KHz
Modulation: AM, OOK
Coding: ASK, PSK
Supported cards:
- EM-Micro EM4100
- HID H10301
- IDTECK Idteck
- Motorola Indala 26
- Kantech IoProx XSF
- AWID
- FECAVA FDX-A
- ISO FDX-B
- Generic HID Prox
- Generic HID Ext
- Farpointe Pyramid
- Viking
- Jablotron
- Paradox
- PAC Stanley
- Keri
- Gallagher
- Honeywell Nexwatch
- Electra
- Securakey
GPIO
13 I/O pins available to user on external 2.54 connectors
3.3 V CMOS Level
Input 5 V tolerant (See AN4899)
Up to 20 mA per digital pin
Infrared
RX wavelength: 950 nm (±100 nm)
RX carrier: 38 KHz (+/-5%)
TX wavelength: 940 nm
TX carrier: 0-2 MHz
TX power: 300 mW
Supported protocols:
- NEC family
- Kaseikyo
- RCA
- RC5, RC6
- Samsung
- SIRC
iButton 1-Wire
Supported protocols:
- Dallas DS199x, DS1971
- CYFRAL
- Metakom
- TM2004
- RW1990
Battery
Battery type: Lithium polymer battery (LiPo)
Battery capacity: 2100 mAh
Battery life: up to 28 days
Operating temperature: 0° to 40° C (32° to 104° F)
MicroSD card
Maximum capacity: up to 256 GB
Recommended capacity: 2-32 GB
Interface type: SPI
Read/Write speed: up to 5 Mbps
USB
Connector type: Type-C
Standard: USB 2.0
Data transfer speed: 12 Mbps
Maximum charging current: 1 A
Bluetooth LE 5.4
TX power: 4 dBm max
RX sensitivity: -96 dBm
Data rate: 2 Mbps
Buzzer
Frequency: 100-2500 Hz
Sound output: 87 dB
Type: Coin
Vibration motor
Force value: 30 N
Speed: 13500 rpm

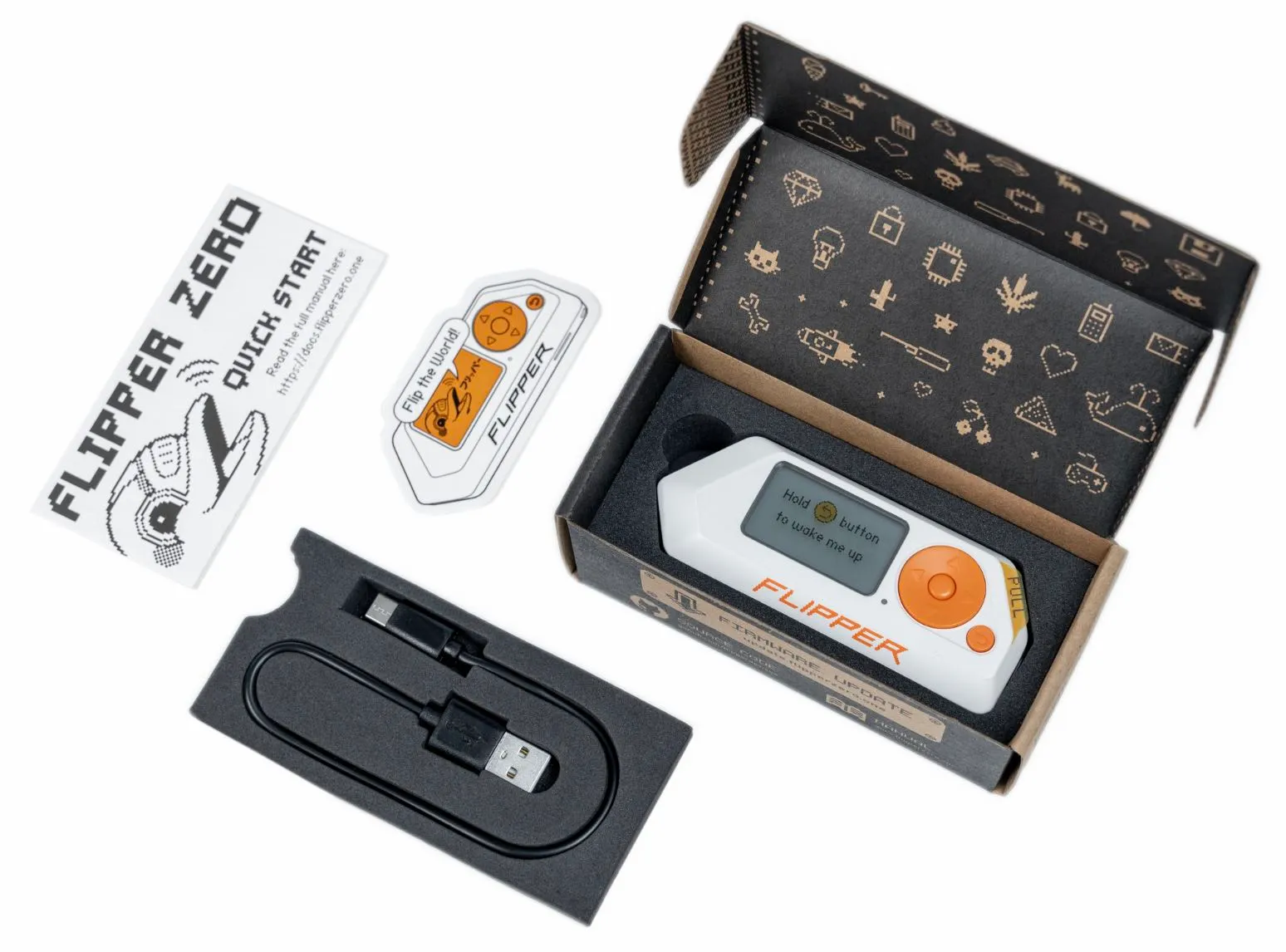

In the box
- Flipper Zero
- USB-C to USB-A cable
- Documentation
- Sticker
MIFARE, MIFARE Ultralight, MIFARE Classic, and DESFire are registered trademarks of NXP B.V.
